DIRECT ACCESS TO APPLICATIONS

Premium Coated Fabrics

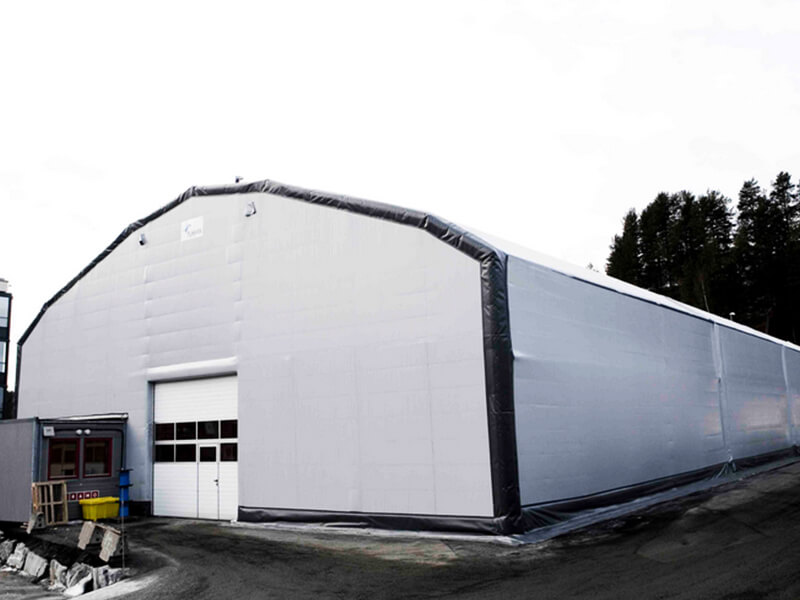

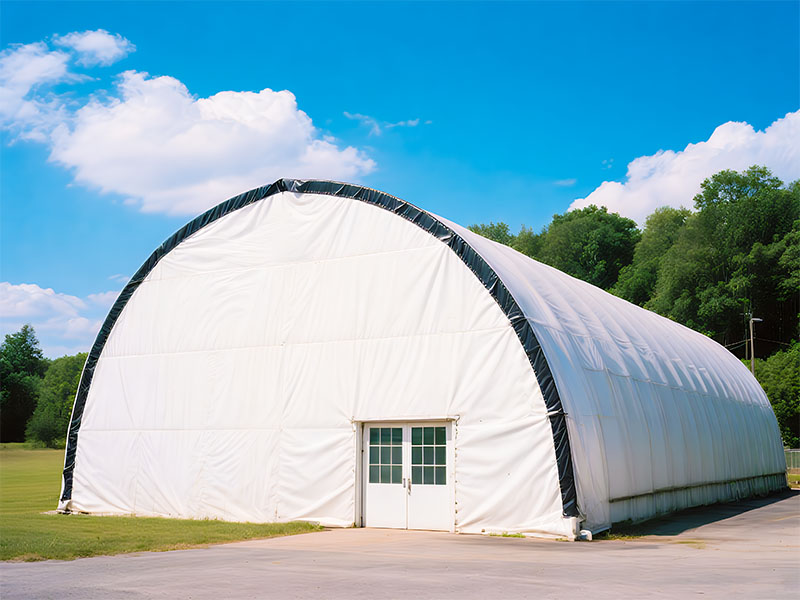

Heat-Armor Tent Fabric

- High tensile and tear strength; - Excellent ability on anti-UV, fire resistance, mould-proofing, anti-abrasion and self-cleaning; - Good heat preservation performance.
  • Model : TFK112323F

    Composition:  1100Dtex *1100Dtex 9*9/cm    DIN 53830/DIN60001
                           1000D *1000D 23*23/inch Knitted    ASTM D 751

    Weight:  1300 gsm +/- 20gsm    DIN53352
                  38 oz    ASTM D 751

    Lacquering:  1/0 Acrylic (upon request)

    Surface finish:  Glossy

    Color:  White or colors upon request

    Breaking Strength(Warp x Weft ):  3300/2500N/5cm    DIN 53354
                                                         750/567 lbs/2"    FS 5100

    Tearing Strength (Warp x Weft ):  650/550    N DIN 53363
                                                       147/125 lbs     FS 5100

    Adhesion Strength: 100 DIN 53357
                                    22.6 FS 5970

    Width: 1000 ~ 3200mm
               36" ~ 126"

    Fire Resistance:  B1, B2, NFPA-701

    Temperature Resistance:  -30℃ ~ 70℃ DIN 53372
                                             -20℉ ~ 158℉ FS 5874

  •    TFK112323F
