MemoTex Air-tight

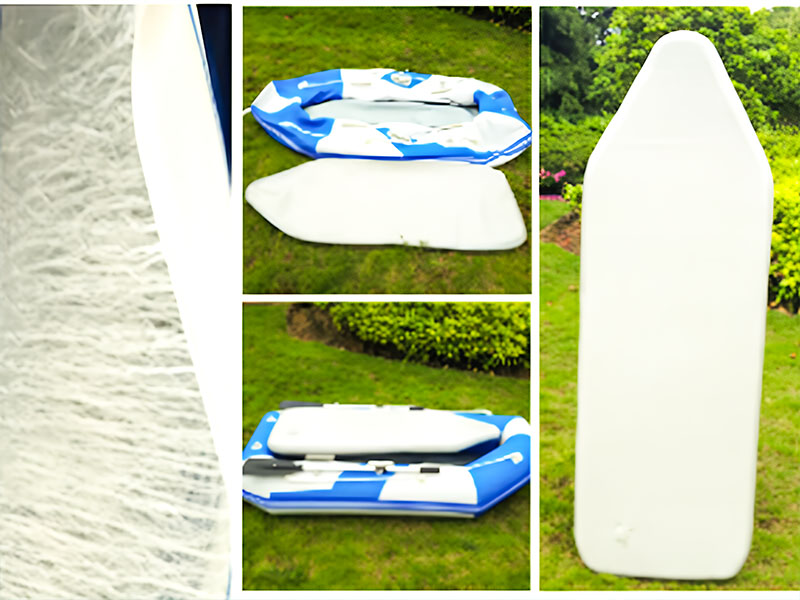

Drop-Stitch Double-Wall Fabric

- High tensile strength and high stiffness. - Extremely bending-resistant. - Dimensionally stable thanks to even space threads. - High pressure resistance and excellent stress distribution. - Excellent air-tightness. - Good durability. - Resistance to UV, Mildew & Chlorine.
  • Model : DSF80265/DSF10027/DSF15028/DSF210285/DSF30033


    Space Yarn: Denier: 500
                        Interval(mm): 80(±5%) 100(±5%) 150(±5%) 210(±5%) 300(±5%)

    Base Cloth: Denier: 500
                       Shape: wavy, starry, linear

    Weight: 2650(±200)gsm, 2700(±200)gsm, 2800(±200)gsm, 2850(±200)gsm, 3300(±200)gsm
                 77(±6)oz, 78.5(±6)oz, 81(±6)oz, 83(±6)oz, 96(±6)oz

    Color: Light Grey, White, Royal Blue, Black

    Breaking Strength (Warp/Fill): MIN 1400/2000/5cm
                                                   MIN318/454 lbs/2"

    Tearing Strength (Warp/Fill): 500/600N
                                                 113/136 lbs

    Adhesion Strength (Face/Back): 150/150(±20)N/5cm
                                                       34/34 lbs/2"

    Width: 1550mm/1600mm/1680mm/1850mm
                61"/63"/66"/73"

    Recommended Pressure: 10Psi, 8Psi, 6Psi

    Max.Pressure: 20 Psi, 20 Psi, 20 Psi, 15 Psi, 10 Psi

    Fire Resistance: B1, B2, NFPA-701

    Temperature Resistance: -30℃ ~ 70℃
                                            -20℉ ~ 158℉
